upports TRIM
New Generation power saving technology that extends the battery life
3-year product warranty. Free technical support service


Product Specifications

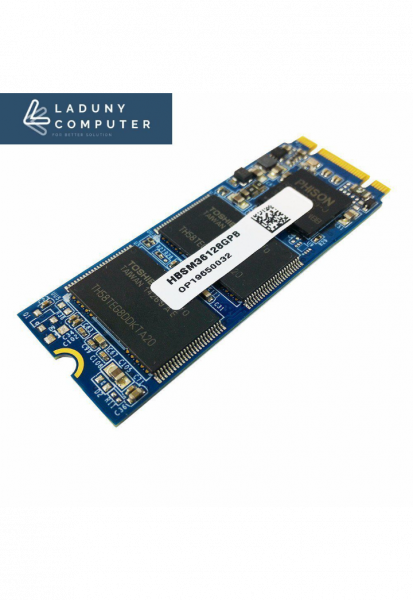

Model MS30 M.2 SATA SSD
Form Factor M.2 2242
M.2 2280

Interface
SATA Rev. 3.0 (6Gb/s)

Capacity 128GB / 256GB / 512GB
128GB / 256GB / 512GB / 1TB[1]

Voltage
DC +3.3V

Operation Temperature
0C ~ 70C

Storage Temperature -40C ~ 80C
Terabyte Written 128GB / 30TB
256GB / 60TB
512GB / 120TB
128GB / 30TB
256GB / 60TB
512GB / 120TB
1TB / 240TB[2]

Performance Crystal Disk Mark:
128GB Read/Write: up to 550/420 MB/s
256GB Read/Write: up to 550/430 MB/s
512GB Read/Write: up to 550/440 MB/s Crystal Disk Mark:
128GB Read/Write: up to 550/460 MB/s
256GB Read/Write: up to 550/470 MB/s
512GB Read/Write: up to 550/480 MB/s
1TB Read/Write: up to 550/500 MB/s[3]
Weight 5g 10g
Dimensions 42(L) x 22(W) x 3.5(H) mm 80(L) x 22(W) x 3.5(H) mm
Humidity RH 90% under 40C (operational)
Vibration 80Hz~2,000Hz/20G
Shock 500 G, 2 m/sec
MTBF 1,500,000 hours
Warranty 3-year limited warranty
Precautions
[1] 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB
[2] Definition and conditions of TBW (Terabytes Written)are based on JEDEC standard
[3] Transmission speed will vary according to different hardware/software conditions, therefore the data can only use for basic reference.
